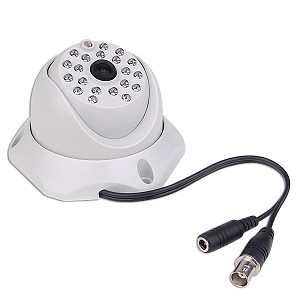

Aposonic 1/3'' CCD Infrared Color Mini Dome Surveillance Camera

Monitor your home or business with this Aposonic A-CDMI01 Infrared Color Mini Dome Surveillance Camera!

This Aposonic A-CDMI01 features a 1/3-inch CCD Sensor that's integrated with Digital Signal Processing (DSP) circuitry providing high quality video images delivered right into your CCTV System. Equipped with 20 IR LEDs, this night vision camera provides a distance of up to 10 meters/32 feet.

Lightweight and easy to install, this Aposonic A-CDMI01 Dome Camera can be mounted on any wall or ceiling for the ultimate in security!

• Aposonic A-CDMI01 1/3-inch CCD Infrared Color Mini Dome Surveillance Camera


• General Features:
• Beige color
• Mini Dome Infrared Surveillance Camera
• Aluminum with sun shield weatherproof construction
• 1/3-inch Color CCD Image Sensor
• 420 TV Lines 20 IR LEDs @ Distance of 10 meters Auto Sensing
• Day/Night Auto Correction
• Wall or ceiling mounted indoor mini dome
• Lightweight and easy to install


• Specifications:
• Scanning Frequency: NTSC: 15,734 KHz (H), 60 Hz (V)
• Scanning System: NTSC: 525 line 2:1 interlace
• Effective Pixels: NTSC: 512 (H) x 492 (V)
• Electronic Shutter: N: 1/60- 1/100,000 sec (Auto)
• White Balance: Auto
• Synchronizing System: Internal
• Sensitivity: 0.2 Lux , 0 Lux at IR on / F2.0
• BLC: Auto
• Signal to Noise: More than 48 dB (AGC off)
• IR Status: 500
• IR View Angle: View angle: 70°, Beam spread: 40°/per IR LED
• IR Wavelength: 850 nm ~ 25 nm
• LED Life:  More than 10,000 hours
• Lens: 4 mm Standard
• Video Output: Composite 1.0 Vp-p at 75 ohm


• Power Specifications:
• Power Consumption: IR on: 180mA, IR off: 120mA (DC 12V)


• Unit Dimensions:
• 2.95 x 4.52 x 4.52-inches (H x W x D, approximate)


• Regulatory Approvals:
• CE

• Aposonic A-CDMI01 1/3-inch CCD Infrared Color Mini Dome Surveillance Camera
• AC adapter (100 - 240V, 50/60Hz)
• Mounting screws

• Notes:
• Model: A-CDMI01


• Product Requirements:
• Available power outlet
• Monitor with BNC connector
