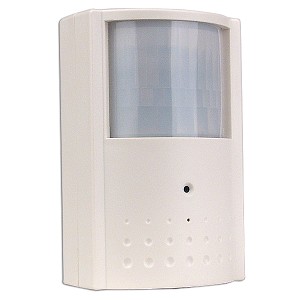

Passive Infrared Motion Detector with 1/3" Color Hidden Camera

Keep an eye on your home or office! This low cost AVC824ZN/P37C H.R. CCD Color Video Camera looks like a standard motion alarm detector, but it's actually a hidden camera with PIR Motion Sensor.

This AVC824ZN/P37C H.R. CCD Color Video Camera features a 1/3-inch HR Color CCD image sensor, 550 horizontal TV lines resolution, built-in pinhole lens and an 0.6 Lux illumination. It can be used as a standalone monitoring device or as an accessory to an alarm system!

• PIR Motion Detector with 1/3-inch H.R. Color CCD Hidden Video Camera


• General Features:
• Motion activated camera with Passive Infrared (PIR) Motion Sensor
• 1/3-inch High Resolution (H.R.) Color CCD with 500 TVL
• Minimum illumination of 0.6 Lux / F2.0
• Built-in pinhole lens: f3.7 / F2.0
• Signal-to-noise ratio of 48dB
• Easy to install, easy to use


• Specifications:
• Number of Pixel: NTSC: 771 (H) x 492 (V), PAL: 753 (H) x 582 (V)
• Minimum Illumination: 0.6 Lux/F2.0
• Lens: 90°
• Video Output: 1.0 Vp-p composite, 75Ω
• PIR Detection Range: 100° with 10 meters and 2 meters high (at 25 °C)
• Lamp Control Loading: 1,250W (max)
• PIR Alarm Output: N.C./N.O., max loading 30Vdc, 0.5A
• Power Source: (±10%) DC12V
• Current Consumption: (±10%) 160mA


• Unit Dimensions:
• 4.33 x 2.75 x 1.92-inches (H x W x D, approximate)


• Regulatory Approvals:
• FCC
• CE
• RoHS

• PIR Motion Detector with 1/3-inch H.R. Color CCD Hidden Video Camera
• User's Manual
• Power/Video cable
• Plastic bracket
• Screw and wall plug
• Jumper

• Notes:
• Model: AVC824ZN/P37C
• 12V DC Power adapter not included


• Product Requirements:
• Monitor with BNC connector
