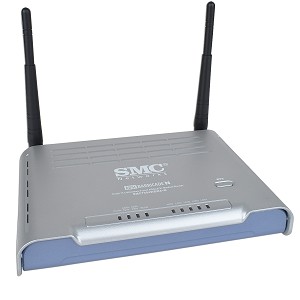

SMC Barricade N Pro 300Mbps 802.11n Wireless LAN/Firewall Router

All-in-One Networking Solution! This SMC Barricade N Pro SMC7904WBRA-N is an ideal networking solution for connecting and sharing your high speed Internet connection.

The SMC7904WBRA-N combines a 4-port 10/100 LAN switch, High speed Wireless-N (draft 802.11n) access point, NAT firewall with Stateful Packet Inspection (SPI) and a built-in ADSL2/2+ modem in one convenient device making it ideal for the home and office!

Wireless speeds up to 300 Mbps makes the SMC7904WBRA-N able to simultaneously stream video and audio, play online games, transfer large files, make VoIP calls and surf the Internet with ease! Order today!

    Features/Specifications:

• SMC Barricade N Pro 802.11n ADSL2/2+ Modem & Router
• General Features:
• Wireless Speed: up to 300 Mbps
• Built-in Wireless-N (draft 802.11n) access point
• 4-Port 10/100 Mbps LAN switch with auto MDI-MDIX
• Built-in ADSL2/2+ Modem
• NAT firewall with Stateful Packet Inspection (SPI)
• WPA/WPA2 Encryption
• Wi-Fi Protected Setup (WPS)
• Web-based management interface
• Lead-free
• Interface:
• Four (4) 10/100 Mbps auto-sensing, Auto Uplink RJ-45 ports
• One (1) ADSL2/2+ RJ-11 port
• WPS security button
• Reset button
• Power switch
• Antennas:
• Two (2) 3.5 dBi external antennas
• One (1) 3.5 dBi internal preset antenna
• ADSL Features:
• T1.413, G.DMT, G.LITE, ADSL2, ADSL2+
• Dying GASP support
• Annex A, L, M
• TR-067 interoperability tested
• ATM Features:
• Class-of-Service: UBR, CBR, VBR, VBR-rt and VBR-nrt
• Multiple PVC’s - up to 8 concurrent
• RFC1483 Encapsulation (IP, Bridging and encapsulated routing)
• PPP over ATM (RFC2364)
• PPP over Ethernet (RFC2516)
• Classical IP (RFC1577)
• VC-Mux & LLC encapsulation
• OAM F4/F5 support
• Management Features:
• EZ Installation Wizard
• Web based management interface (HTTP)
• Remote management
• Security Features:
• NAT Firewall with SPI
• Denial-of-Service protection
• Intrusion Detection System
• Access Control
• Web Filter
• DMZ Host
• IPSec, PPTP and L2TP VPN pass-through
• SSID Broadcast disable
• MAC address Filtering
• WEP 64-/128-Bit Encryption
• WPA-/WPA2-PSK (Pre Shared Key)
• WPA/WPA2 Enterprise mode (802.1x)
• Router Features:
• NAT (Network Address Translation) / PAT (Port Address Translation)
• ALG (Application Level Gateways)
• Virtual Server
• Virtual DMZ Host
• UPnP IGD compliant
• DHCP Server
• DNS Proxy/Relay
• Dynamic DNS (DynDNS.org and TZO.com)
• System log
• Standards:
• IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX)
• IEEE802.11b, IEEE802.11g, IEEE802.11n
• Operating Frequency:
• FCC: 2412~2462 MHz (Ch1~Ch11)
• ETSI: 2412~2472 MHz (Ch1~Ch13)
• Typical RF Output:
• 11n Mode: 14 dBm
• 11g Mode: 14 dBm
• 11b Mode : 17.5 dBm
• Temperature:
• Operating: 0 degrees C to 40 degrees C
• Storage: -20 degrees C to 70 degrees C
• Humidity:
• Operating: 10% to 85% Non-condensing
• Storage: 5% to 95% Non-condensing
• Power Input:
• 15V/0.8A
• Unit Dimensions:
• 1.5 x 7.5 x 6-inches (H x W x D, approximate)
• Regulatory Approvals:
• FCC
• A-Tick
• CE
• RoHS
• WEEE

  Package Includes:

• SMC Barricade N Pro 802.11n ADSL2/2+ Modem & Router
• Power Adapter (100-120V ~ 50/60 Hz)
• Manual on CD (3-inch type)
• Ethernet cable

  Additional Information:

• Notes:
• Series: Barricade N Pro
• Model: SMC7904WBRA-N
• P/N: 722.8874
• UPC: 6 62698 58931 3
• Product Requirements:
• ADSL Internet service
• 2.4 GHz 802.11n wireless adapter or 2.4 GHz 802.11b/g wireless adapter installed on each PC. Alternatively an Ethernet adapter can be used
• Internet Explorer 5.5 or above, Netscape 4.7 or above, Mozilla Firefox 1.0 or above
• Available power outlet
•
